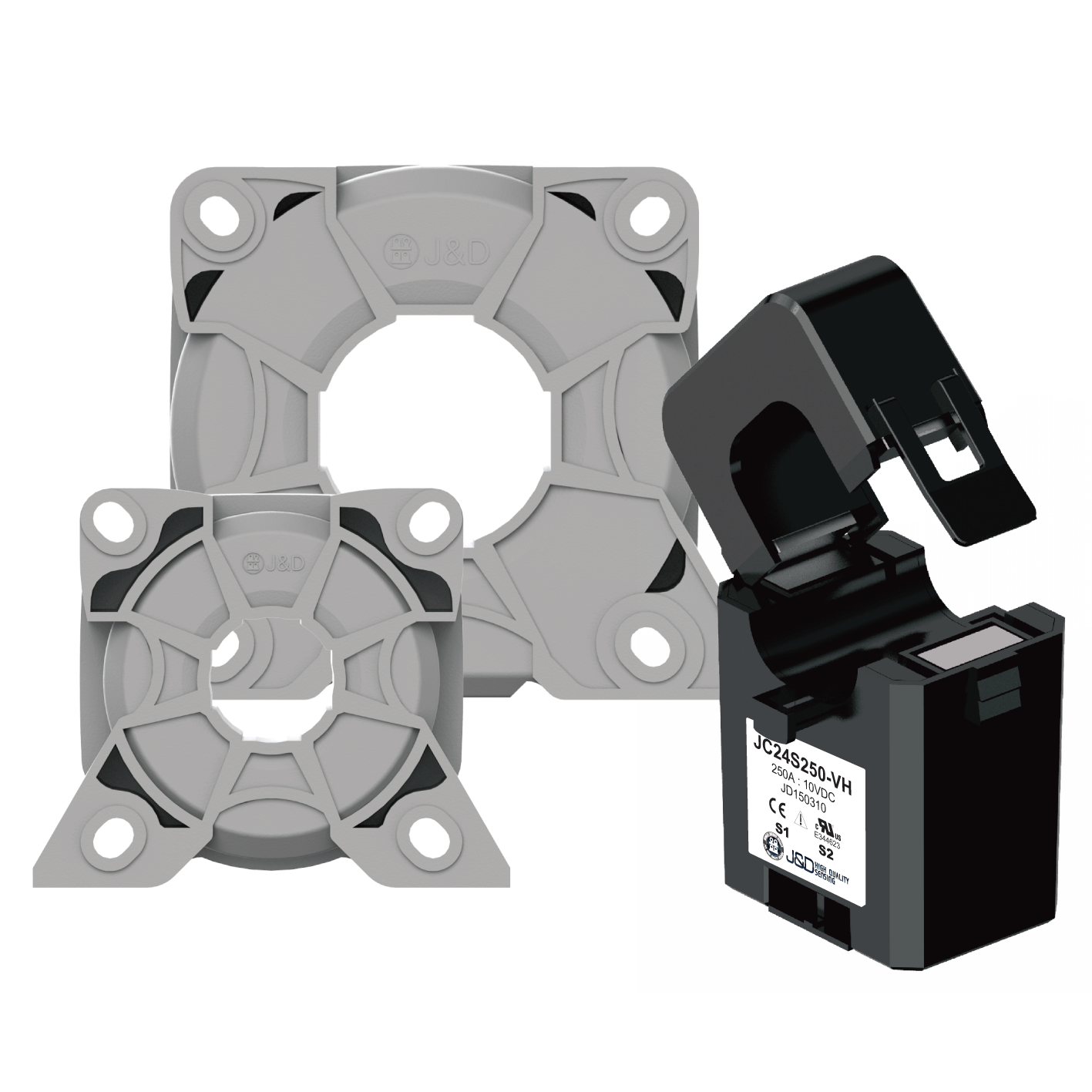

CURRENT TRANSDUCERS

Revenue Grade metering or in up to 20 kHz services up to 1000 Vac

Exception low-end accuracy and phase angle error

UL Listed—UL 2808 XOBA

CE mark

Opening split core style

Standard 0.333 Vac and optional 1.0 Vac outputs available.

CURRENT TRANSDUCERS

J&D sells several different series of current transformers in various window sizes, current ranges,

and IEEE C57.13 or IEC 61869-2 accuracy grades. Most power quality and Energy Meters use current, voltage output CTs.

J&D CTs are suitable for use in harmonics or Revenue Grade metering or in up to 20 kHz services up to 1000 Vac.

To select a CT, we recommend first deciding on a style, either a split-core (opening ),flexible Rogowski coil (opening)

or a solid-core (non-opening) CT, then select the model you need based on the maximum load current

you are measuring and the size of the conductor being measured.
