DC Current Sensors

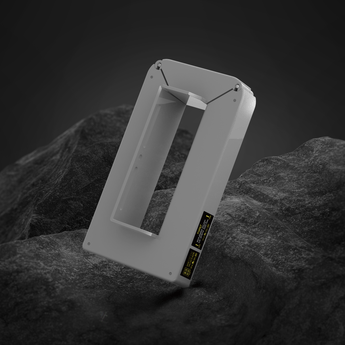

IDCS-UI Series: DC Current Sensor

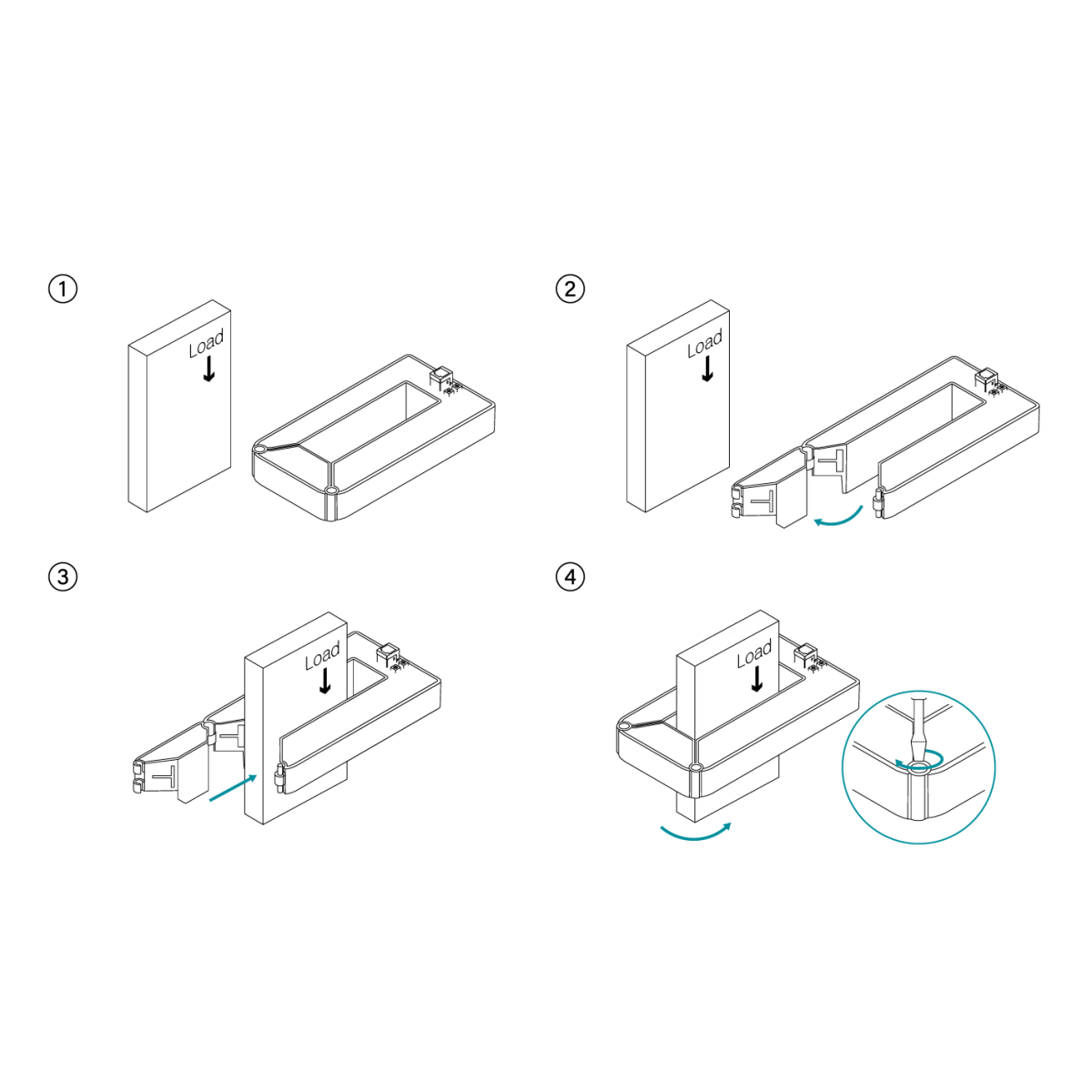

The IDCS-UI DC Current Sensors bring plug-and-play retrofit capability to high-ampere DC installations, monitoring loads from 1000 A to 5000 A without interrupting power lines. Their hinged split-core design clips over massive busbars or cables in seconds, while a closed magnetic path maintains accuracy and immunity to external fields.
Dual auxiliary outputs 500 mV and 471 mV provide galvanically isolated, proportional signals that plug directly into DC energy meters, data loggers and IoT gateways via standard RJ11 or RJ45 connectors.
Encapsulated construction resists heat, vibration and moisture, preserving calibration in mission-critical battery storage, solar PV, rail traction and industrial-process environments. Upgrade large-scale power monitoring quickly and safely with the IDCS-UI DC Current Sensors.
KEY FEATURES
FUNCTION
Engineered for accuracy and durability, they are suited to deliver precision current measurements in DC applications like renewable energy or transportation. Applications for DC measurements include battery monitoring, solar string and other systems that utilize DC power.
The IDCS-UI Series is compatible with Sensway AC/DC energy meters with optional CTid technology and requires a sensor hub.
ADVANTAGES
Plug & Play

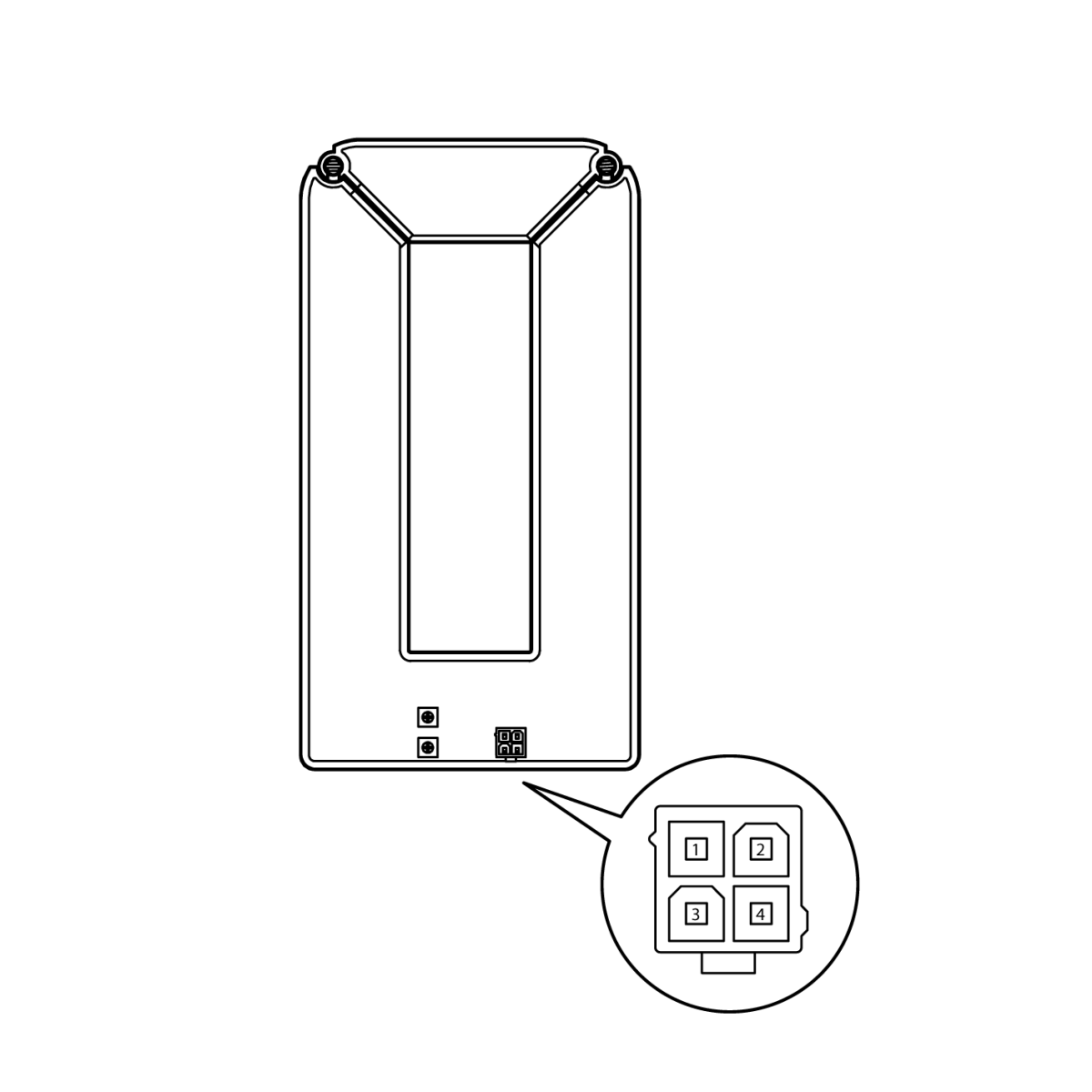

- A quick RJ11 or RJ45 connection makes wiring easy and reliable.
- Fast configuration of the sensor's rating.
