DC CURRENT SENSORS

IDCS-I series

IDCSXXI series is a split core current transformer for the electronic measurement

of DC waveform current with galvanic separation between the primary current

and the secondary output voltage.

IDCSXXI series is an ideal CTid built-in split-core current transformer for

JAGUAR IoT meters, and its accuracy is 1%.

KEY FEATURES

- AC variable speed drives and servo motor drives

- Static converters for DC motor drives

- Battery supplied applications

- Uninterruptible Power Supplies (UPS)

- Switched Mode Power Supplies (SMPS)

- Power supplies for welding applications.

DOWNLOADS

- IDCS-16I (PDF)

- IDCS-24I (PDF)

- IDCS-36I (PDF)

For other information about your products, check out our brochures.

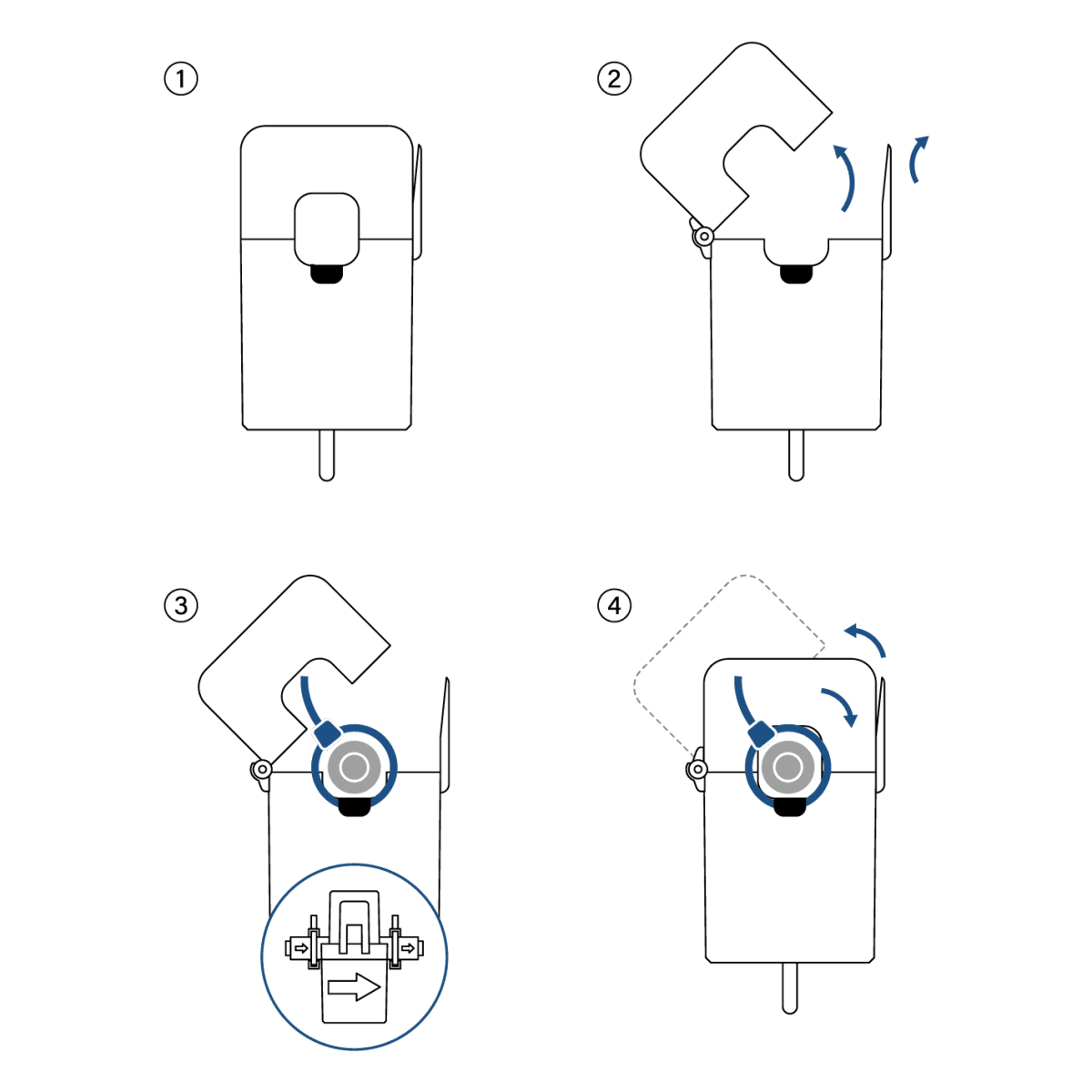

And an installation guide for using the product.

NOTICE!

- Please be sure that Failure to follow these instructions can result in serious injury and/or cause damage.

- The transducer shall be used in electric/electronic equipment in accordance with the operating instructions of all related systems

   and component manufacturers with respect to applicable standards and safety requirements.

- Follow corresponding national regulations and safe electrical work practices.

- This equipment must only be installed and serviced by qualified personnel. And the qualified personnel is one who has skills

  and knowledge related to the construction and operation of this electrical equipment and installations, and has received safety training to recognize and avoid the hazards involved.
